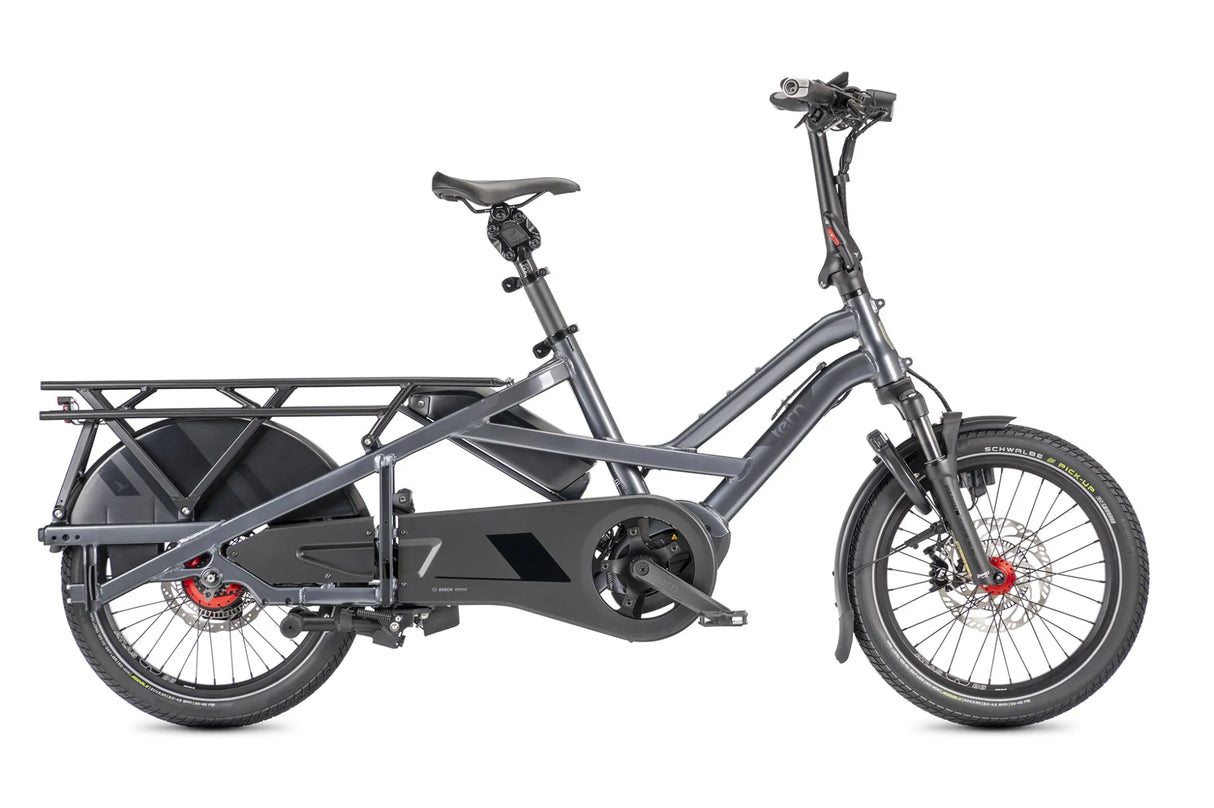

GSD R14

What makes it an R14?

• Bosch® Smart System with Kiox 300 color display enhances your eBike experience with smart features for theft protection, ride customization, navigation, and more!
• Bosch Anti-Lock Braking System enables safer, more efficient braking

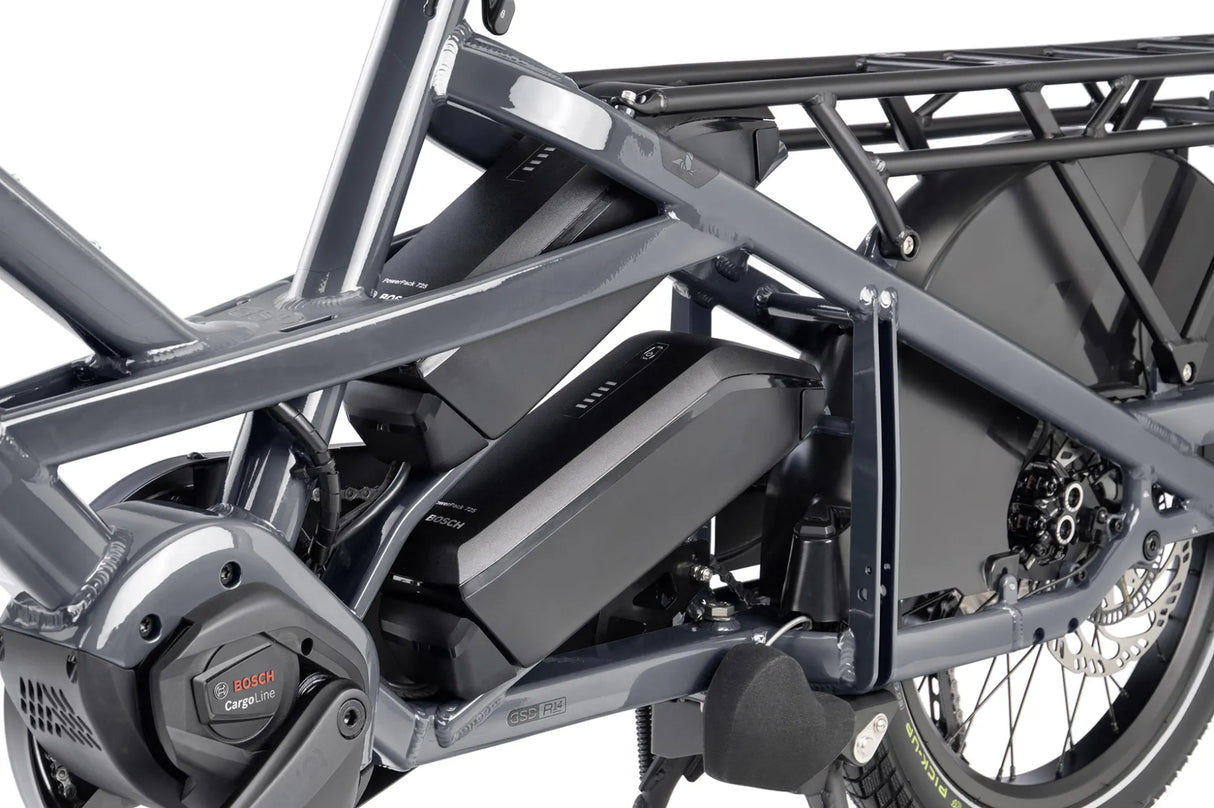

• Dual-battery compatible, ready to power through heavy use and long distances of up to 288 km (179 mi)
• Silent, smooth, and low-maintenance Gates Belt Drive
• Maintenance-free Rohloff E-14 electronic shifter with huge 526% gear range, perfect for tackling various terrains and riding styles with ease

GSD highlights

• Best-in-class hauling capacity, rated to a maximum gross vehicle weight of 210 kg (463 lb) with a rear rack load capacity of 100 kg (220 lb)
• Powerful Bosch Cargo Line motor provides up to 85 Nm of torque and 400% support
• Magura® 4-piston hydraulic disc brakes deliver precise and responsive stopping power
• Robust, locking dual-leg kickstand with remote unlock and integrated foot extensions for maximum loading stability
• Easy-sharing cockpit adjusts without tools to fit riders 150 - 200 cm (4'11" - 6'7") tall and weighing up to 130 kg (287 lb)
• UL 2849-certified e-bike system & third-party tested to meet German cargo bike standard DIN 79010 for superior safety and reliability

SPECIFICATIONS

General Info

• Speeds: 1 x 14
• Weight: 38.77 kg (85.5 lb)
• Gear Inches: 18" - 96" (1.45 - 7.64 m)

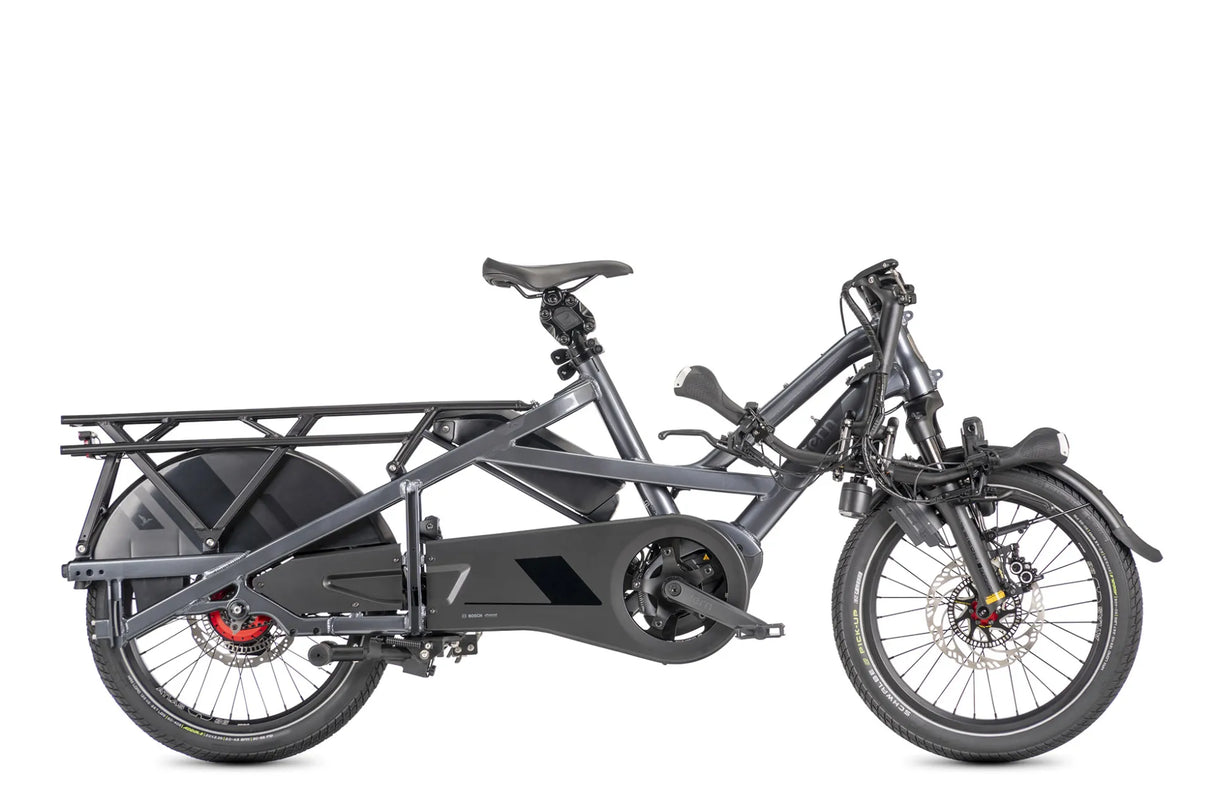

• Folding Size: 185 × 46 × 88 cm (72.8 × 18.1 × 34.6 in)
• Folding Time: 5 seconds
• Frame Sizes: One size
• Distance: Seatpost to Handlebar: 49 - 59 cm (19.3 - 23.2 in)
• Distance: Saddle to Pedal: 69 - 105 cm (27.2 - 41.3 in)
• Suggested Rider Height: 153 - 200 cm (60.2 - 78.7 in)
• Max Gross Vehicle Weight: 210 kg (463 lb)
• Max Load Weight: 210 kg (463 lb)
• Max Rider Weight: 130 kg (286.6 lb)

Frame

• Frame: Tern GSD, 6061-AL, patented MultiTruss design, DIN 79010 certified: 210 kg
• Fork: Suntour custom for Tern, 1.5" tapered Chromoly steerer, 34 mm stanchions, Thru-axle, DIN 79010 certified: 210 kg

Cockpit

• Handlepost: Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
• Stem: Tern Andros, adjustable, forged construction, patented technology
• Headset: Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated
• Handlebar: Tern Sweep, 6061-AL, Tern Andros adapted
• Grips/Bar Tape: Ergon
• Saddle: Tern GSD by Velo
• Seatpost: Tern VLT (Very Large Telescope) with Cane Creek suspension and LightAction levers
• Seatpost Clamp: Tern Collar

Brakes

• Front Brake: Magura MT-C ABS, 4-piston hydraulic disc, 203 mm rotor
• Rear Brake: Magura MT-C ABS, 4-piston hydraulic disc, 203 mm rotor
• Brake Levers: Magura MT-C e-stop, hydraulic, with brake light sensor
• Brake Cable & Housing: Magura ABS, hydraulic

Wheels

• Front Wheel: Tern Atlas, heavy duty cargo wheel
• Rear Wheel: Tern Atlas, heavy duty cargo wheel
• Front Hub: Tern Atlas, Cooling Fins, Boost Thru-Axle, sealed cartridge bearings

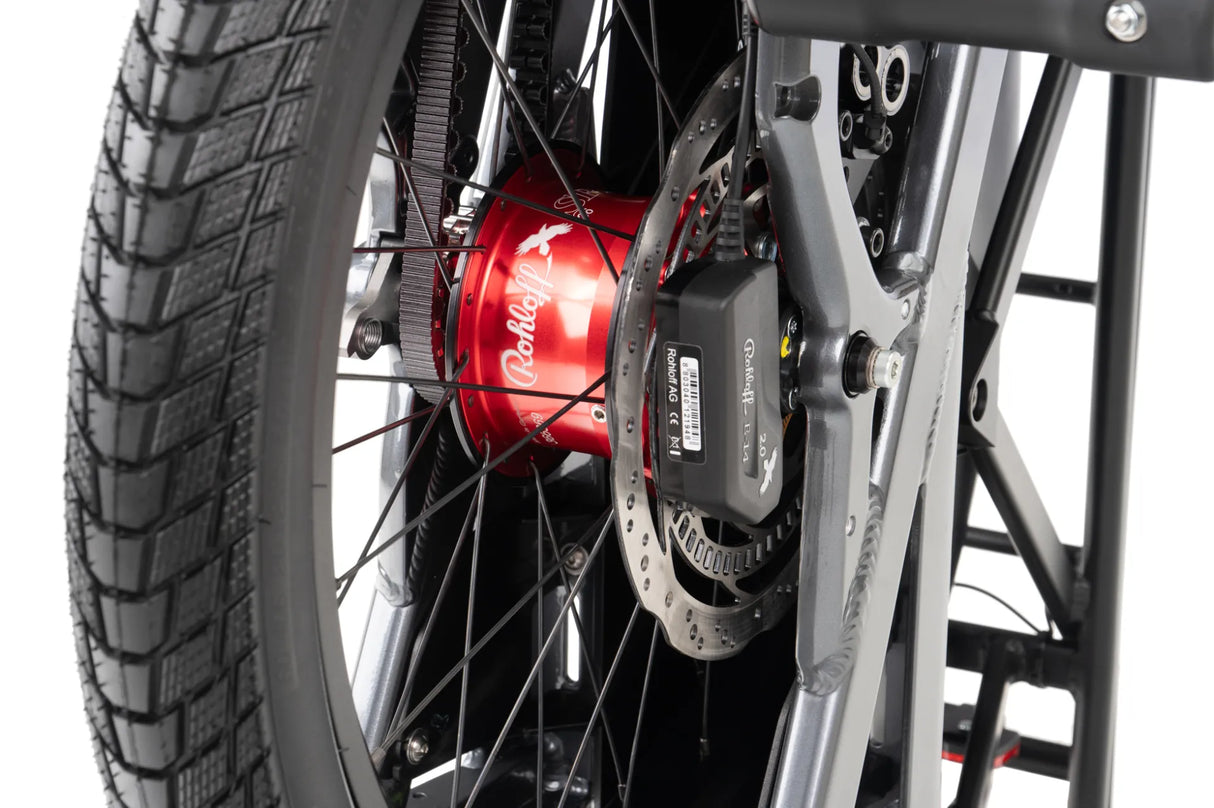

• Rear Hub: Rohloff E14, 526% range, Boost
• Spokes & Nipples: Stainless steel
• Rims: Tern Atlas, ultra wide 36 mm, dual reinforced joint
• Tires: Schwalbe Pick-Up, cargo-optimized, Super Defense puncture protection, Reflex

Transmission

• Shifter(s): Rohloff E14, e-shift 14 spd
• Crankset: Tern GSD, Gates CDX CNC machined beltring
• Cassette/Freewheel: Gates CDX, precision CNC machined cog
• Bottom Bracket: Motor integrated
• Chain: Gates Carbon Drive CDX belt
• Pedals: Urban with non-slip surface, sealed bearings
• Shifter Cable & Housing: Rohloff E14, e-shift

E-System

• Motor: Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
• Battery: Bosch 800 PowerPack, Fast Swap, Dual Battery bays, optional 2 x 800 Wh max capacity
• Display: Bosch Kiox 300 w/ LED remote, connectivity with Bosch eBike Flow IOS/Android app, electronic bike lock, Rohloff integrated shifting w/ auto downshift
• Range: 800 Wh: 67-144 km (42-89 mi); 1600 Wh: 134-288 km (83-179 mi)
• Charger: 220V, 4A (EU); 100-240V, 4A (US)
• Connect Module: Bosch Connect Module with GPS/GSM connectivity & anti-theft alarm when subscribed to Flow+; free 12-month trial upon activation
• Anti-Lock Braking System: Bosch Anti-Lock Braking System, Gen 2

Bells & Whistles

• Bell: Pitch Plus, brass
• Chainguard: Tern GSD, full chain cover
• Kickstand: Atlas Lockstand Gen 2, AutoLock w/ remote unlock, patented technology
• Luggage Socket: Combo Mount
• Front Light: Ignis Headlight, Hi/Lo beams, 700 lumens
• Rear Light: RearStop Brake Light, Always on
• Fenders: F: Aluminum R: GSD wheel guard

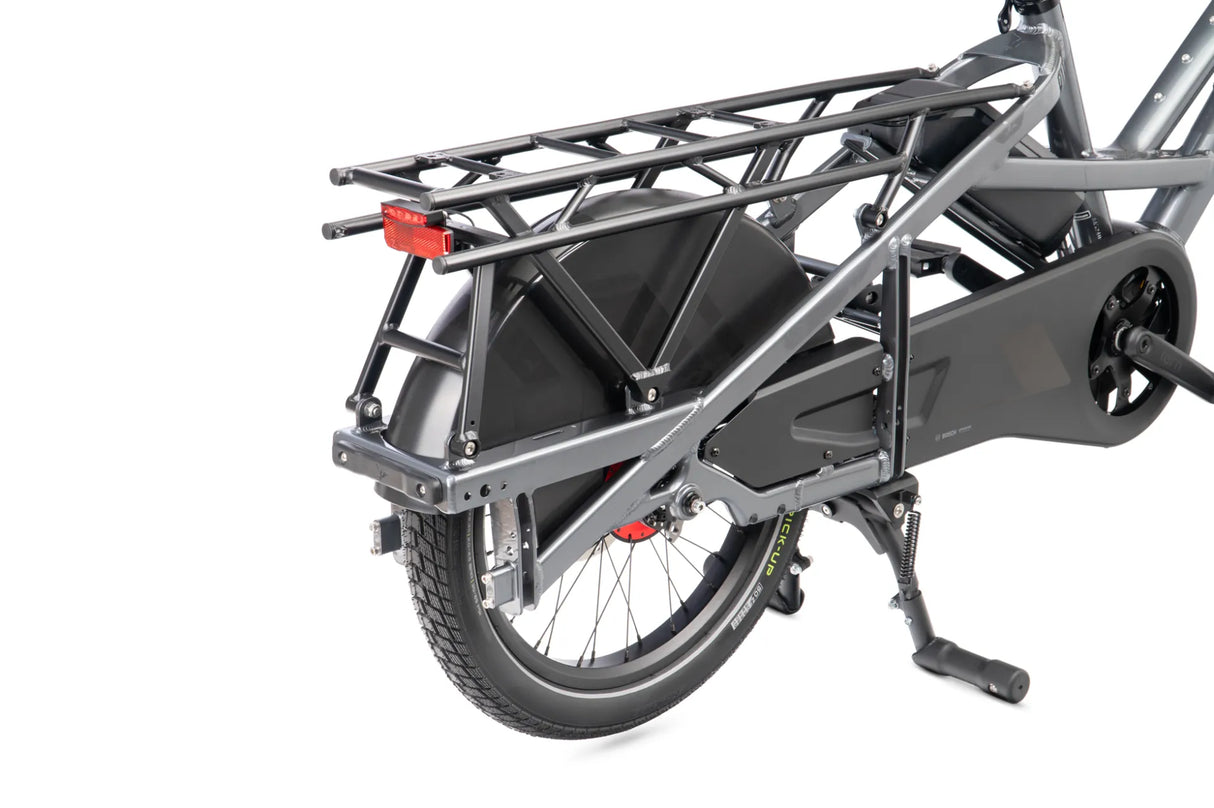

• Rack(s): Atlas G, 100 kg (220 lb) capacity
• Frame Lock: ABUS or AXA, keyed-alike with Bosch battery
• On-board Charging: USB-C, 5V/2.4A, 12W max

*Note: These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. The specifications for your country may differ slightly. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
