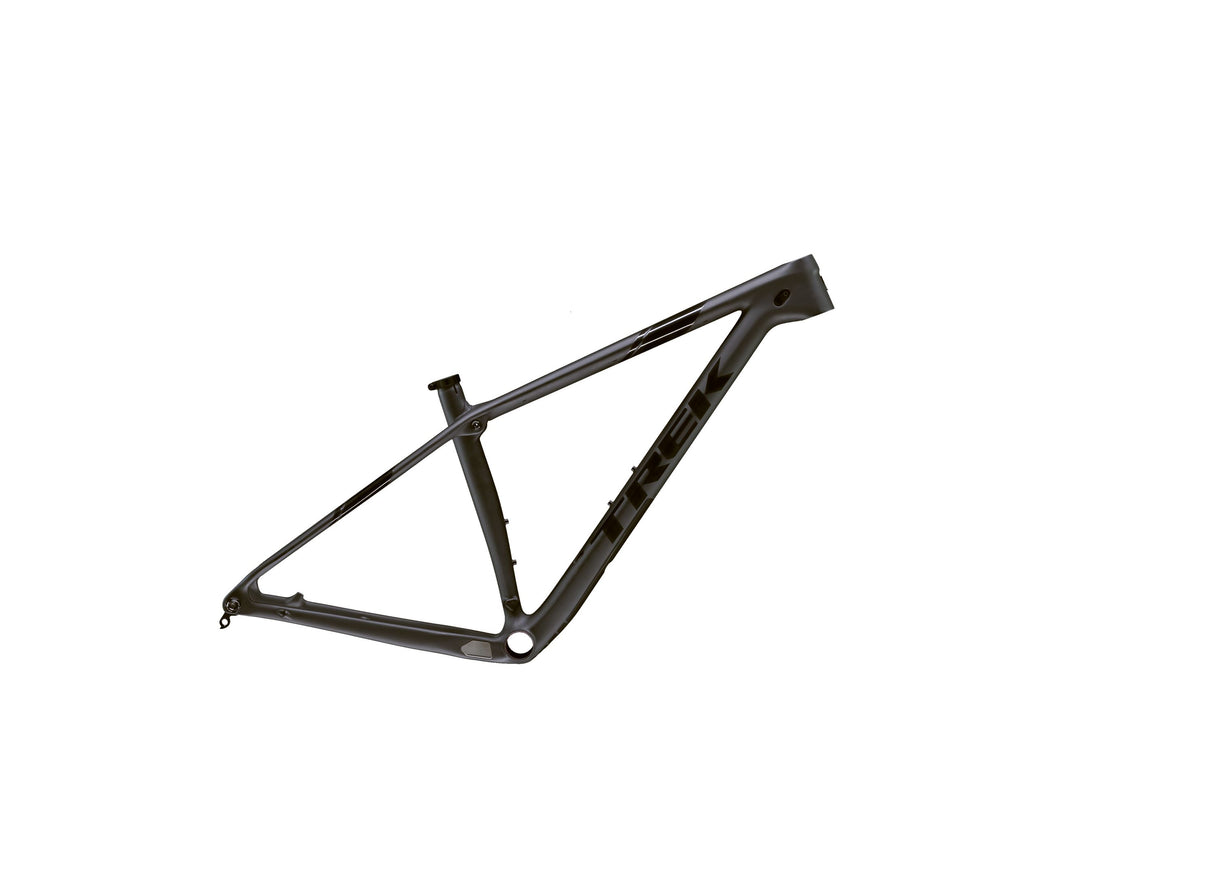

Trek Procaliber SL Frameset Gen 1

Procaliber SL is for the fastest XC riders. It's built with Super Light OCLV Mountain Carbon and delivers the unique trail-smoothing advantage of IsoSpeed, which takes the edge off fatiguing bumps in the trail so you can stay stronger longer.

• This SL OCLV Mountain Carbon frameset is the ideal start to an obscenely lightweight cross country build
• The IsoSpeed decoupler makes it ride smoother than any other hardtail, so your body doesn't get beat up by trail chatter
• Control Freak Cable Management allows you to run any combination of cables exactly the way you want, while still giving you sleek looks and protecting your cables against unnecessary wear
• Boost148 spacing for 29" wheels on all frame sizes except S, which has a 142x12mm rear axle and 27" wheels

OCLV Mountain Carbon

Trek's mountain-specific carbon fiber is tougher carbon, with unique materials and layup procedures, Trek's advanced engineering, and a higher standard of testing.

IsoSpeed smooth

IsoSpeed takes the edge off body-beating small bumps and trail chatter so you can stay stronger longer, without giving up any pedaling efficiency.

Frame	Super Light OCLV Mountain Carbon, IsoSpeed, tapered head tube, MicroTruss, Control Freak internal routing, balanced post mount brake, Boost148 on M and larger sizes (Size S: 142x12mm rear hub)
Skewer Rear	Bontrager Switch thru axle, removable lever
Headset	FSA IS-2, 1-1/8'' top, 1.5'' bottom

Geometry Chart

B B Drop	4.8
B B Height	30.2
Chainstay Length	42.5
Eff Top Tube	55.8
Frame Reach	38.2
Frame Size Letter	S
Frame Size Number	15.5"
Frame Stack	58.3
Head Angle	69.3°
Head Tube Length	10
Offset	4.4
Seat Tube	39.4
Seat Tube Angle	73.0°
Standover	72.7
Trail	8.3
Wheelbase	105.3
Wheel Size	27.5"

Color

MATTE DNISTER BLACK
