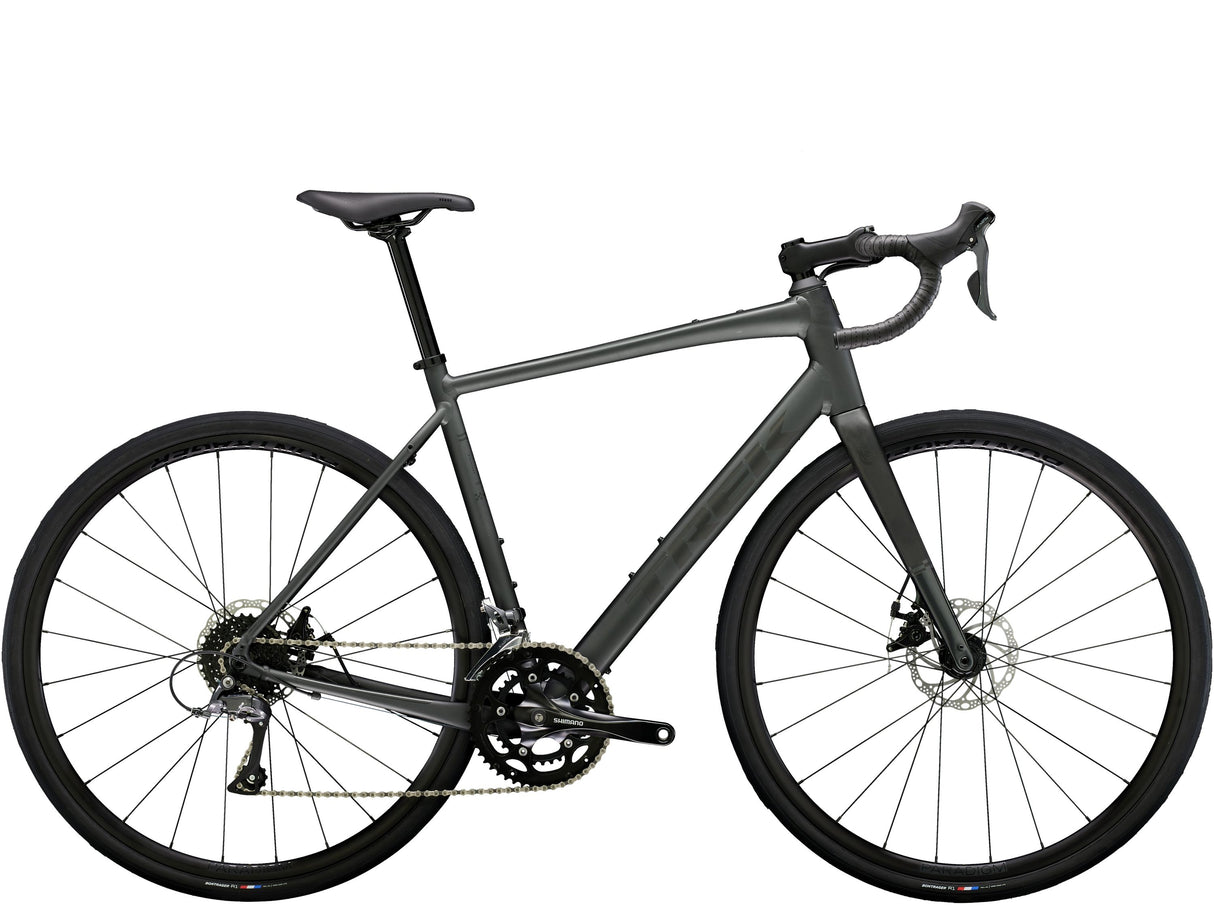

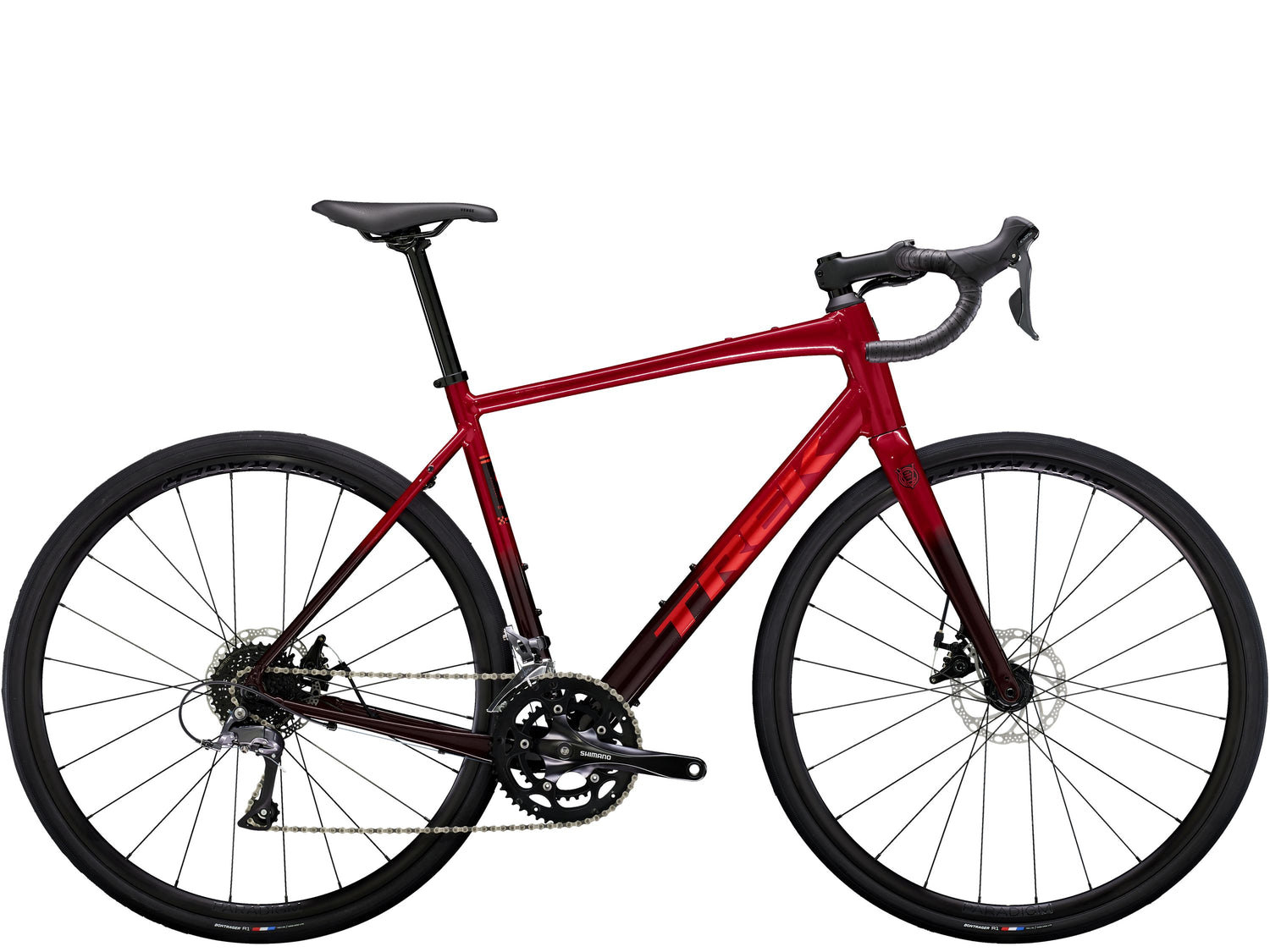

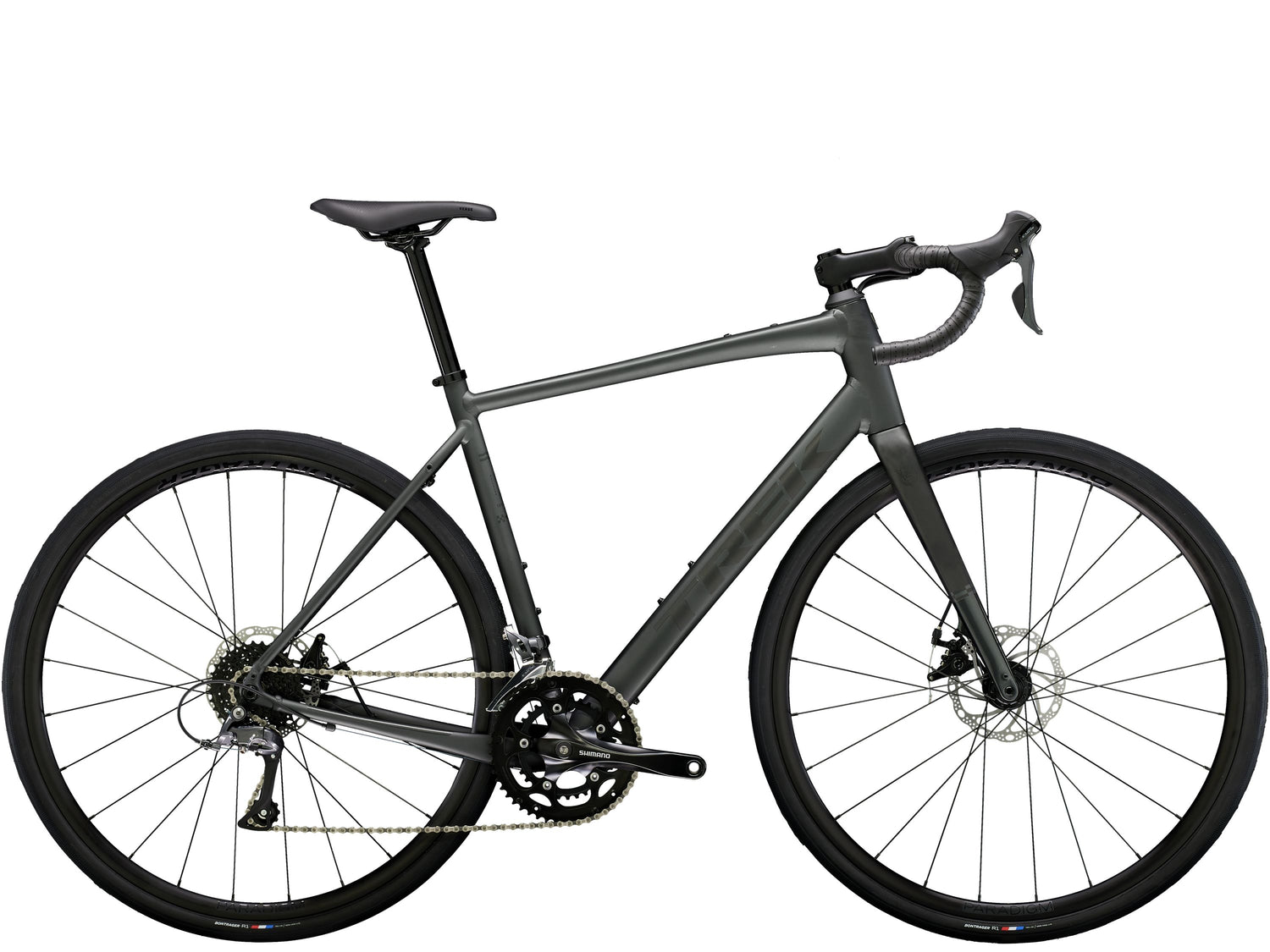

Trek Domane AL 2 Gen 4

Domane AL 2 is a speedy and versatile performance road bike that's a perfect starting point for anyone looking to get into road riding. With an Alpha Aluminum frame, clearance for larger tires, an 8-speed Shimano Claris drivetrain, rack, fender, and top tube mounts, and a comfortable all-day riding position — Domane AL 2 is perfect for group rides, fast commutes, and even venturing beyond paved paths to most gravel roads.

• A totally versatile and smooth ride that's a perfect choice for your first performance road bike
• Room for bigger tires let you ride everything from smooth pavement to most gravel roads in comfort
• Internal cable routing and an integrated cockpit provides premium looks and a clean aesthetic
• Rack, fender, and top tube mounts make it easy to carry all the gear you'll need
• Powerful disc brakes allow for super-fast stopping power in all conditions

Lightweight design

A new full carbon fork and updated frame design helps shave around half a pound from the previous generation Domane AL Disc.

Right for any road

Room for bigger tires let you ride everything from smooth pavement to most gravel roads in comfort.

Long-haul comfort

A more upright road riding position keeps you comfortable, confident, and efficient during long days in the saddle.

Pack it up, pack it in

Mounts for a top tube bag, rack, fenders and water bottles let you carry everything you need for day-long adventures, fast commutes, and anything in between.

Modern ergonomics, premium integration

A modern handlebar with 4cm of flare between the drops and hoods put you in a more comfortable position, and new hidden cable routing offers premium integration typically found on more expensive models.

High-value performance

Domane AL Disc is built in Trek's road race heritage, which means it's a road bike you won't outgrow as your rides get longer and faster.

Frame	100 Series Alpha Aluminum, tapered head tube, internal routing, fender mounts, flat mount disc, UDH, 142x12mm thru axle
Fork	Domane AL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
Tire	Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32mm
Hub Front	Formula RX-512 alloy, 6-bolt, 100x12mm thru axle
Hub Rear	Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12mm thru axle
Rim	Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, Presta valve
Spokes	14g stainless steel, black
Skewer Front	Bontrager Switch chamfered thru axle, removable lever
Skewer Rear	Bontrager Switch chamfered thru axle, removable lever
Shifter	Shimano Claris ST-R2000-R, 8 speed, right // Shimano Claris ST-R2000-L, 8 speed, left
Front Derailleur	Shimano Claris R2000, FD-R2000, 8-speed, 31.8mm clamp
Rear Derailleur	Shimano Claris RD-R2000, long cage, 34T max cog
Crank	Shimano RS200, 50/34 (compact), 165mm length
Bottom Bracket	Shimano UN30, 68mm, threaded cartridge, 110mm spindle
Cassette	Shimano HG31, 11-32, 8 speed
Chain	Shimano Sora HG71, 8 speed
Brake	Tektro C550 mechanical disc brake, dual piston, flat mount // Tektro C550 mechanical disc brake, dual piston, flat mount
Brake Rotor	Tektro wave, 6-bolt, 160mm
Saddle	Verse Short, steel rails, 145mm width
Seatpost	Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 250mm length
Handlebar	Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 36cm control width, 40cm drop width // Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 38cm width
Stem	Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length

Geometry Chart

B B Drop	8
Chainstay Length	42
Eff Top Tube	50.7
Frame Reach	36
Frame Size Number	44cm
Frame Stack	51
Head Angle	70.3°
Head Tube Length	9.5
Offset	5.3
Seat Tube	39
Seat Tube Angle	74.6°
Standover	65.7
Trail	6.6
Wheelbase	98.3
Wheel Size	700c
