Description

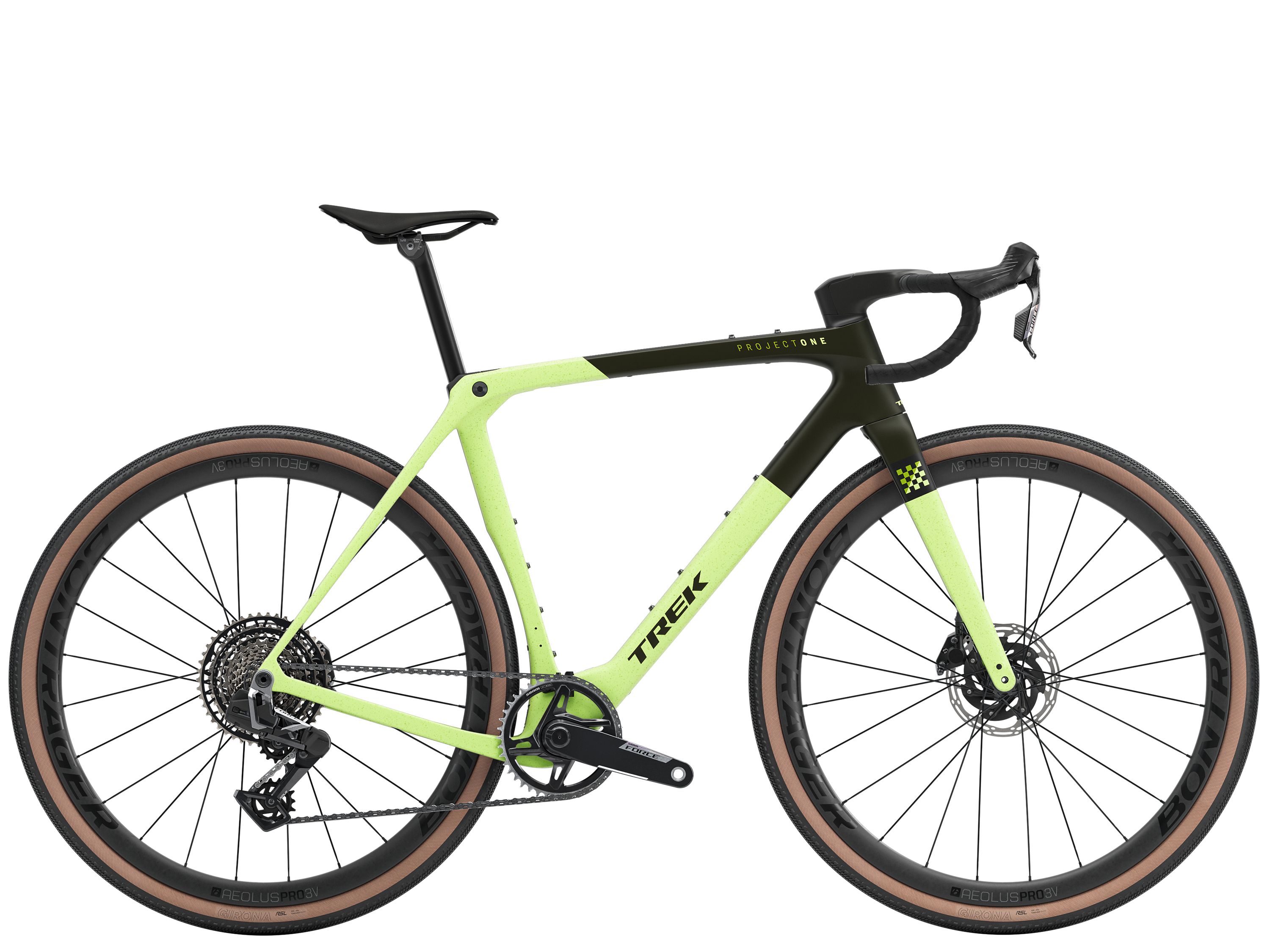

Checkmate SLR 7 AXS is a carbon gravel race bike built to toe the line and kick up dust on the long and rough road. To deliver ultimate race-day performance, Checkmate combines a lightweight aero design with IsoSpeed and Gravel Race geometry that keeps you poised for the attack without eating up your energy. It's topped off with a SRAM Force XPLR AXS E1 wireless drivetrain, carbon wheels, and Trek Aero RSL bar/stem for a lightweight build.
- You're after a gravel bike that's made to soar right off the starting line with Full System Foil aero tube shapes and an aero-yet-ergonomic one-piece bar/stem
- Comfort isn't kicked to the side, thanks to road-smoothing IsoSpeed tech and clearance room for tires up to 45mm wide (as measured)
- New Gravel Race geometry keeps you tucked out of the wind and poised for the attack without compromising the fit you need for comfort through long miles
- A premium, ultra-light 800 Series OCLV Carbon frame helps you save energy by reducing road chatter
- It comes equipped with plenty of mounts to add Adventure Bags and carry all your race-day essentials
Tech Specs
| Frame | 800 Series OCLV Carbon, IsoSpeed, hidden fender mounts, integrated frame bag mounts, RCS Headset System, invisible cable routing, T47, flat mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12mm chamfered thru axle |
| Fork | Checkmate SLR full carbon, tapered carbon steerer, hidden fender mounts, flat mount disc, 12x100mm thru axle |
| Wheel Front | Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25mm rim width, 100x12mm thru axle |
| Wheel Rear | Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25mm rim width, SRAM XD-R driver, 142x12mm thru axle |
| Tire | Bontrager Girona RSL, Tubeless Ready, GR puncture protection, aramid bead, 220 tpi, 700x42mm |
| Tire Part | Bontrager TLR sealant, 6oz |
| Rim Strip | Bontrager TLR |
| Skewer Front | Bontrager Switch chamfered thru axle |
| Skewer Rear | Bontrager Switch chamfered thru axle, removable lever |
| Shifter | SRAM Force AXS E1 // SRAM Force AXS E1 |
| Rear Derailleur | SRAM Force XPLR AXS, 46T max cog |
| Crank | SRAM Force XPLR with AXS Power Meter, 42T, DUB Wide, 172.5mm length |
| Bottom Bracket | SRAM DUB Wide, T47 threaded, internal bearing |
| Cassette | SRAM Force XPLR XG-1371, 10-46, 13 speed |
| Chain | SRAM Force E1, 12/13 speed |
| Brake Rotor | SRAM CenterLine X, centerlock, round edge, 160mm |
| Saddle | Bontrager Aeolus Pro, carbon rails, 145mm width |
| Seatpost | KVF aero carbon seatpost, 5mm offset, 280mm length |
| Handlebar | Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 41cm control width, 44cm drop width, 110mm stem length |
| Battery | SRAM AXS battery pack (with charger) |
Our fastest gravel bike ever
New Full System aero tube shapes and an aero-yet-ergonomic one-piece barstem help make Checkmate our fastest gravel bike to date.
Our lightest gravel bike ever
Premium components and 800 Series OCLV Carbon keep things light and fast for ultimate race-day performance.
IsoSpeed comfort tech
Isospeed compliance tech absorbs fatiguing bumps in the road to keep you riding stronger longer.
Plenty of tire clearance
Room for gravel tires up to 45mm wide (as measured) keep you smooth and fast on quick courses and gnarly terrain.
Race-optimized gear storage
Multiple frame mounts let you add Adventure Bags to carry your race-day essentials while leaving room for ample hydration.
New Gravel Race geo
This brand-new geometry was designed specifically for gravel racing to keep you tucked out of the wind, nimble on corners, and in control on descents and rougher roads.
Geometry
| B B Drop | 8 |
| Chainstay Length | 42.6 |
| Eff Top Tube | 59.2 |
| Frame Reach | 40.9 |
| Frame Size Letter | XL |
| Frame Size Number | 61 |
| Frame Stack | 63.3 |
| Head Angle | 72.4° |
| Head Tube Length | 19.9 |
| Offset | 4.9 |
| Saddle Rail Height Max Short | 81.6 |
| Saddle Rail Height Max Tall | 85.6 |
| Saddle Rail Height Min Short | 75.1 |
| Saddle Rail Height Min Tall | 79.1 |
| Seat Tube | 58.3 |
| Seat Tube Angle | 73.7° |
| Standover | 88.6 |
| Trail | 6.2 |
| Wheelbase | 105.4 |
| Wheel Size | 700c |
