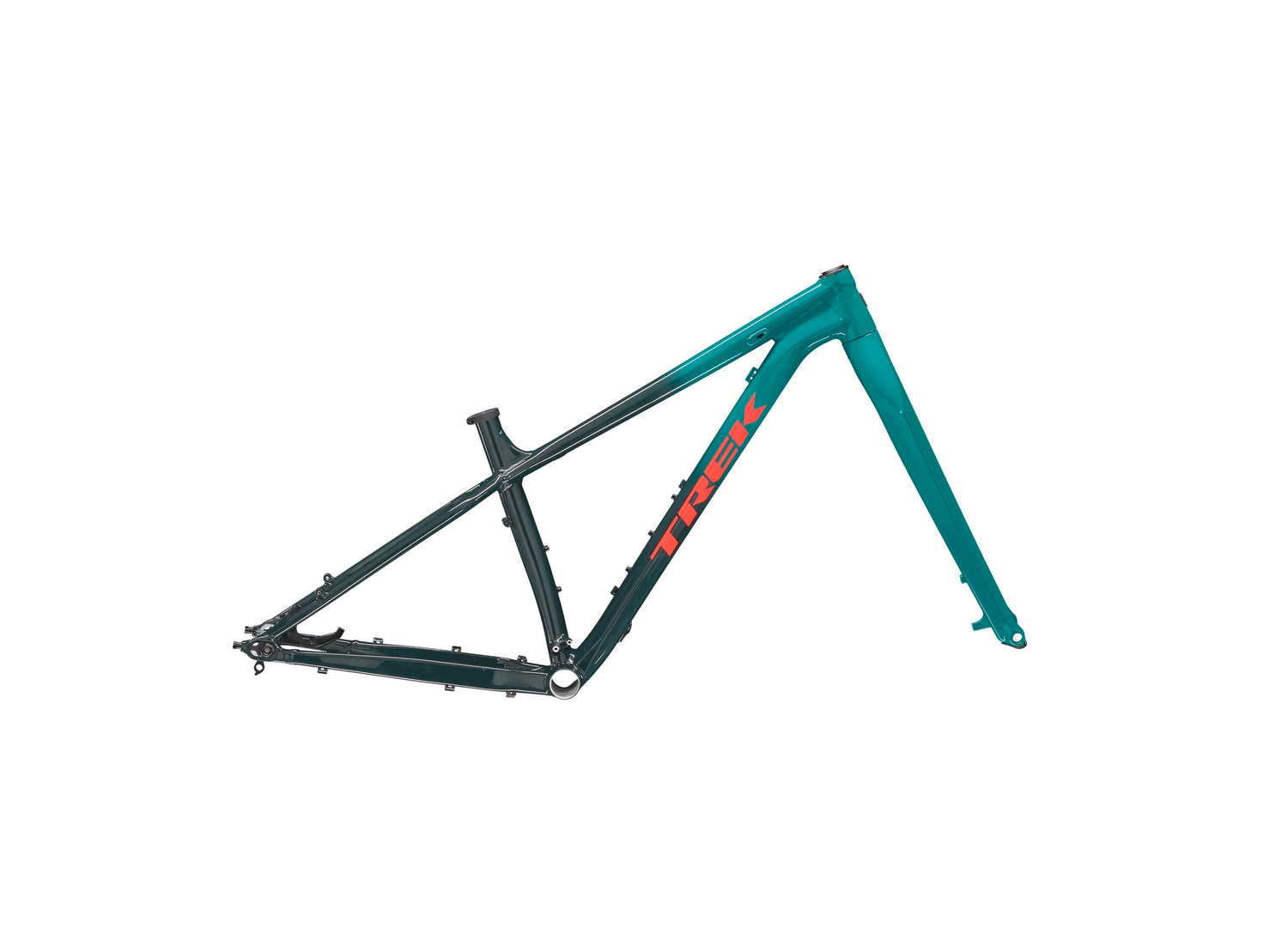

Trek Farley AL Frameset

Farley AL is a high-value platform for your fat bike build. This lightweight Alpha Aluminum fat bike frameset has the ride characteristics of a traditional trail bike, with all the monster truck capability that comes with fat bike tires.

• If you were under the impression that fat bikes were sluggish, this bike will change your mind
• It's a four-season freedom machine that lets you ride outside all year long
• You can run your choice of wheels with 26˝ or 27.5˝ tires
• The faster you ride a fat bike, the more fun it gets — and this bike is a lot of fun

27.5˝ fat tires

More efficient 27.5" fat tires keep you rolling faster, especially on groomed or packed snow.

Frame	Alpha Platinum Aluminum, tapered head tube, internal derailleur & dropper post routing, rack mounts, 197x12mm adjustable horizontal sliding dropouts
Fork	Bontrager Haru, tapered alloy steerer, OCLV Carbon lowers, 490mm axle-to-crown, 15x150mm thru axle
Skewer Front	Bontrager 150x15mm thru axle, 198mm length
Skewer Rear	Bontrager Switch thru axle, removable lever
Seat Collar	Bolt-on, 36.4mm
Headset	FSA IS-2, 1-1/8'' top, 1.5'' bottom

Geometry Chart

B B Drop	6.7
B B Height	31.3
Chainstay Length	45.5
Eff Seat Tube Angle	73.0°
Eff Top Tube	56.7
Frame Reach	38.3
Frame Size Letter	S
Frame Size Number	15.5"
Frame Stack	60.1
Head Angle	69.0°
Head Tube Length	10
Offset	5.1
Seat Tube	39.4
Seat Tube Angle	71.5°
Standover	72.9
Trail	9.4
Wheelbase	109.2
Wheel Size	27.5"

Color

NAUTICAL NAVY TO TEAL FADE
