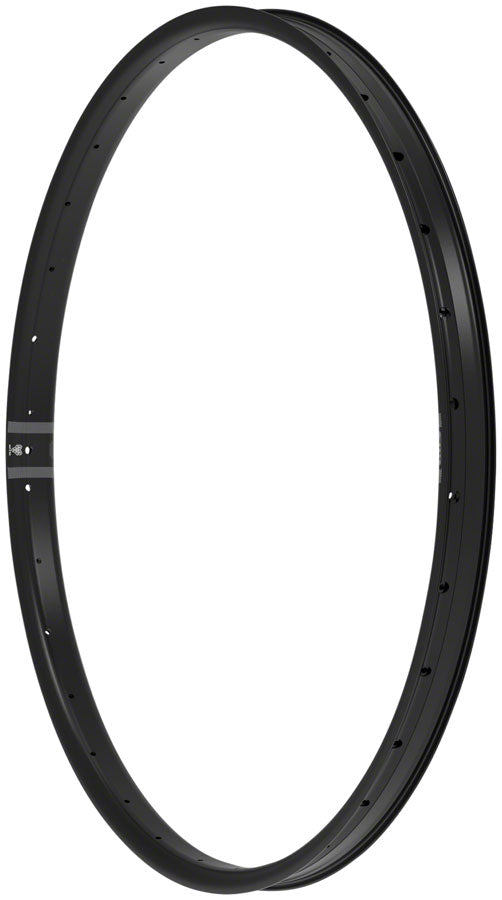

WTB HTZ i35 Rim - 29" TCS Tubeless Disc Black 32H

E-bikes add to the riding experience by simply providing more for less. More distance more laps more climbs and more descents. With all those “mores” also comes more weight continually bashing on the components of an e-bike. In order to overcome the increased forces induced by the technological progression of modern e-bikes WTB designed the HTZ rims with more material in every area of the rim profile. Every wall of the rim is 25-30% thicker in comparison to those of standard rims which are then paired with the proven I-Beam center support to ensure no beating was too great for these rims. All HTZ rims are TCS 2.0 tubeless feature asymmetrical spoke drilling and are available in widths ranging from i23 to i35 in order to provide options for e-bikes ranging from e-assist gravel bikes to dual-crown downhill bikes that no longer need a truck to be shuttled.

Capable of withstanding the forces of a modern e-bike

4D angled spoke drilling eliminates binding and lateral loading and disperses tension more evenly over a greater area

Symmetric outer profile provides equal dissipation of impact forces on both sides of the rim while asymmetric spoke hole drilling allows for more even spoke tension and increased wheel strength

Disc-brake only

TCS 2.0 Tubeless ready and comes with a preinstalled Solid Strip which lies beneath the tubeless tape and prevents sagging at the spoke holes creating a smooth interface between the rim and tire bead. This prevents air from escaping around the bead and therefore requires less air volume and pressure to mount a tire. Solid Strip also protects the airtight tubeless system from being punctured in the case of a broken spoke.TCS 2.0 creates a more robust easily installed and dependable tubeless system

Rim Width (Internal)	35
Brake Track	None
Manufacturer Spec ERD (mm)	604
Valve	Presta
Color	Black
Weight	768
Wheel Size	29"
Designed for ebike	Yes
Defined Color	Black
ISO Diameter	622 / Road / 29"
keyword search	ebike
Hub Drilling	32
Rim Material	Alloy
Tire Type	Tubeless Ready
Rim Center Offset (mm)	7
